Bharat Mandapam fire curtains
One fire curtain 100 metres long and 20 metres high, plus smoke curtains through the halls, for the Pragati Maidan convention centre that hosted the G20 Summit.

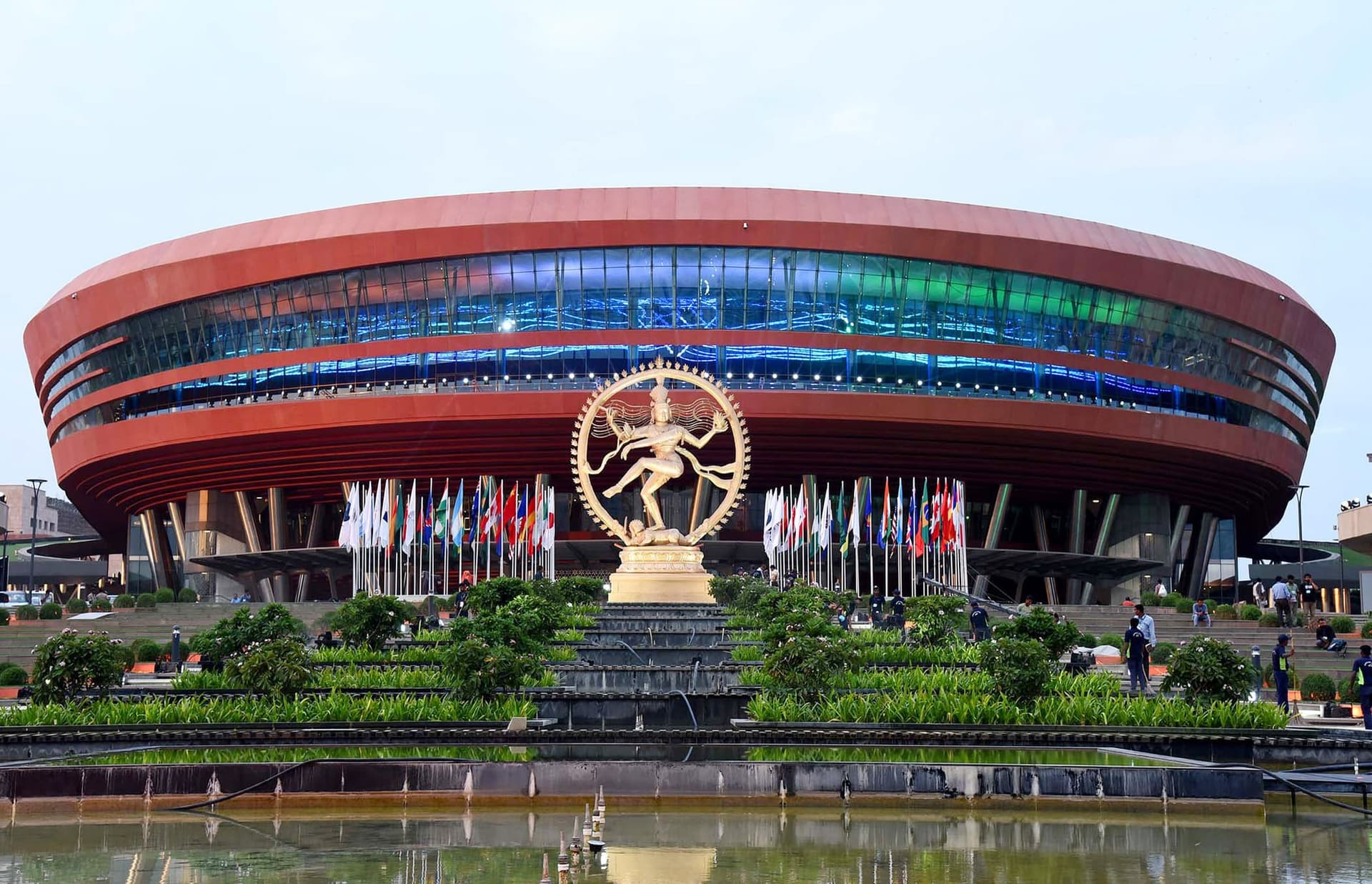

The convention centre at Pragati Maidan. Photo of the venue, not of the curtains.
The challenge
Exhibition halls, a large convention centre, atriums and service cores gave the openings very different shapes and sizes.
The brief called for wide smoke barriers, compact fire curtains for the lift lobbies, drops of up to 16.5 metres, a curved boundary of about 100 metres, and installation in phases.
At that width a door was never an option: the boundary had to stay open for crowds and close only when the alarm calls for it.
Drawn to scale
The curtain against one person 1.7 metres tall. Look for the small black figure at the left foot of the curtain.
Drawn flat. On site the run follows a curve and is built from several bays that act as one system.
Almost twelve people stacked head to toeCloser: a 6 metre slice of the same 20 metre drop, with the same person beside it.
Supplied for the venue
The 100 metre fire curtain
One multi-bay fire curtain about 100 metres long and 20 metres high, with gravity fail-safe deployment and links to the BMS. Our fire curtain guide calls it “what is believed to be the largest fire curtain ever commissioned in India”.
See our fire curtainsSmoke curtains in seven halls
Automatic smoke curtains across seven halls, one of them with a 16.5 metre drop, covering several atrium zones.
See the fire safety rangeLift lobby and hall curtains
Fire curtains at the Multi-Purpose Hall, the Podium Hall and six service-core lift lobbies.
Fire curtain models and sizes
In all, about 32,000 m² of curtain, backed by EN 12101-1, EN 1634, EN 13501-2, CE marking and ISO 9001:2015.
Project facts
- Sector
- Public venue: an exhibition and convention centre run for the government.
- Location
- Pragati Maidan, New Delhi.
- Client
- Shapoorji Pallonji JV, for ITPO.
- Products
- Automatic fire curtains and automatic smoke curtains.
- Made by
- Our fire safety division, one of five on our Jaipur campus at Mahindra World City, 8 acres in all, where 200+ people have made products since 1993 for India and for export.
Related projects
Planning a venue at this scale?
Send the hall drawings and opening sizes, and our fire safety team will reply with a curtain layout to discuss.
