Yashobhoomi fire curtains
Fire curtains fixed in place and smoke curtains that drop on alarm, planned zone by zone, through the halls of the India International Convention and Expo Centre in Dwarka.

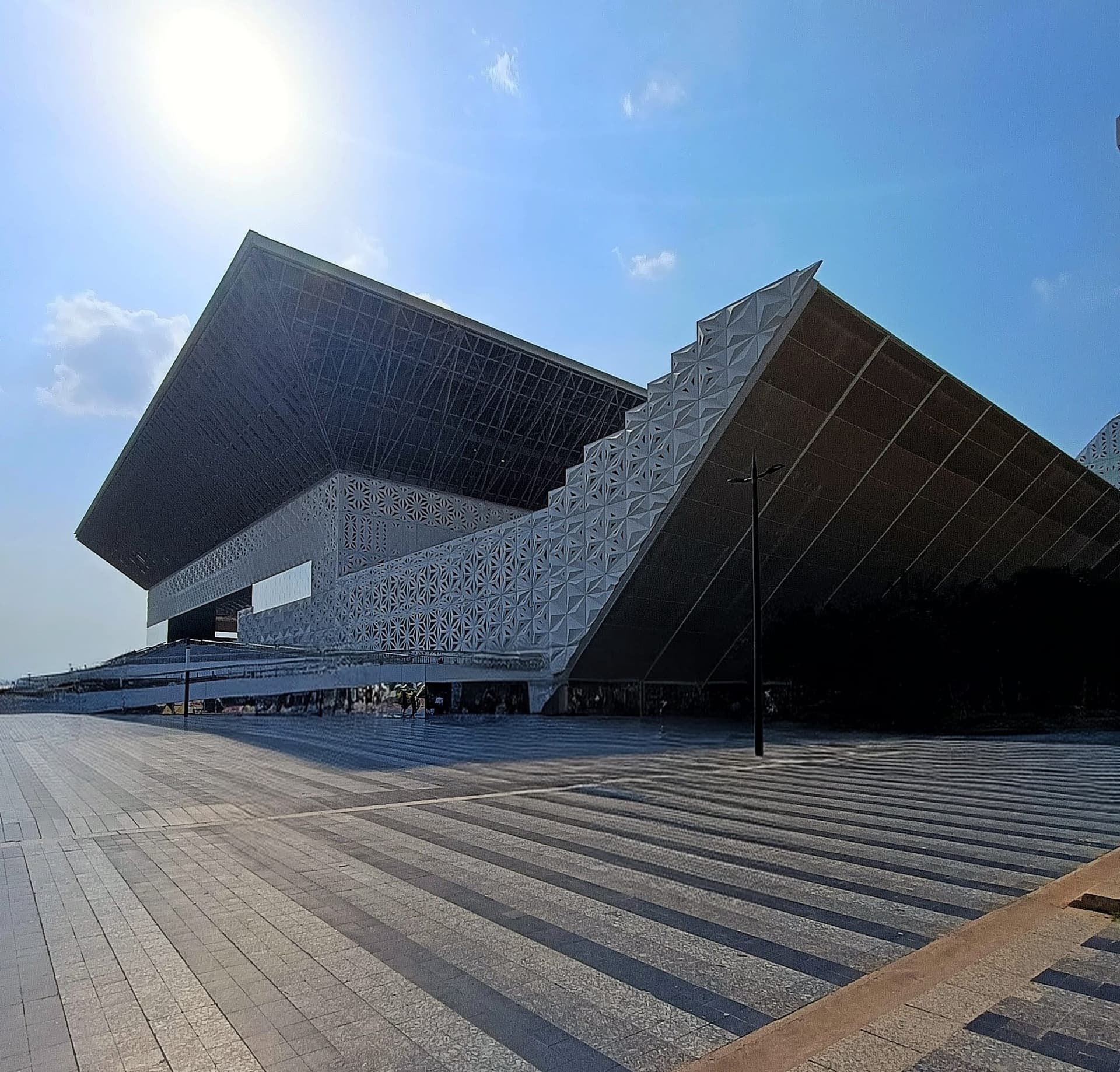

Yashobhoomi from the outside. The picture shows the venue itself; the curtains sit inside it.
The challenge
Huge halls open into one another, and several of the openings between them are far larger than any doorway.
Each one needed fire compartmentation that keeps the spaces open in daily use, closes on the fire alarm, and fits curtain sizes well past standard limits.
Width against depth
The longest fixed curtain here and the deepest automatic drop, drawn on one grid beside a person 1.7 metres tall.
The drop is shown as a single line because the point is its depth: a curtain falling 21 metres from its head box, more than twelve times the height of the person at the floor.
Supplied for the venue
Curtains fixed in place
Fire curtains fixed across the largest openings, the biggest about 72 metres wide and 6 metres high.
Fixed and automatic fire curtainsAutomatic smoke curtains
Smoke curtains that lower when the alarm sounds, the deepest falling 21 metres, all wired to the fire alarm system.
Smoke curtains in our fire rangeTested as one system
Commissioned through combined performance tests covering activation, backup operation, emergency override and audio-visual alarms.
About 70,000 m² of openings in all. Our fire curtain guides also list Dwarka for a second installation measuring 100 by 20 metres, alongside Bharat Mandapam. Standards behind the range: EN 12101-1, EN 1634-1 and EN 15269, plus ISO 9001:2015 and the CE mark.
Project facts
- Sector
- MICE: a convention and exhibition centre.
- Location
- Dwarka, New Delhi.
- Products
- Fixed fire curtains, plus automatic smoke curtains.
- Made by
- The fire safety division, part of a five-division group of 200+ people in Jaipur. Our Mahindra World City campus there covers 8 acres. In business since 1993, with exports abroad.
Related projects
Planning an expo hall or convention centre?
Share the opening sizes and the alarm strategy, and the fire safety team sizes each curtain zone with you.
